Quick Answer

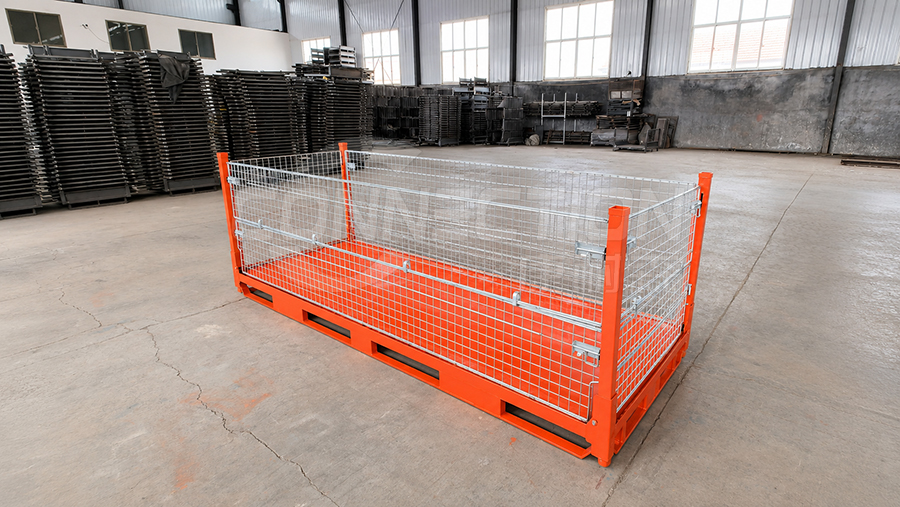

The CC-3200/1100 is a 3.2-metre-long collapsible storage cage designed for storing and moving long, bulky or irregularly shaped industrial goods. It measures 3200 × 1150 × 1100 mm and includes front and rear fold-down gates, a collapsible side-frame structure, forklift and pallet-truck access, and a stackable design. When folded, 54 units can be loaded into one 40'HC container.

Warehouses often use standard wire containers for small components, cartons and pallet-sized goods. However, these containers may not provide enough length for products such as metal profiles, furniture components, automotive parts or other oversized materials.

The new CC-3200/1100 long collapsible storage cage was developed for these applications. Its extended 3.2-metre length provides more usable storage space, while the folding and stacking structure helps reduce the floor space required by both loaded and empty cages.

CC-3200/1100 Specifications

Why Use a 3.2m Long Storage Cage?

Most conventional warehouse cages are designed around standard pallet dimensions. They work well for smaller goods but can be inefficient when the products are significantly longer than the container.

In these situations, warehouse operators may have to place one product across several pallets, leave materials loose on the floor or use temporary supports. These methods can occupy more space and make internal handling less consistent.

The CC-3200/1100 provides a single enclosed storage unit with an overall length of 3200 mm. Depending on the required load capacity and internal dimensions, it may be used for products such as:

• Long metal components and profiles
• Automotive and machinery parts
• Furniture frames and panels
• Rolled or packaged materials
• Industrial components with non-standard dimensions
• Long goods moving between production and storage areas

The cage dimensions and base structure should always be selected according to the actual product size, total weight and loading method.

Front and Rear Fold-Down Gates Improve Access

Loading a long storage cage only from one end can make it difficult to reach products positioned in the centre. For this reason, the CC-3200/1100 is designed with access from both sides.

The front and rear gate sections can be folded downward, allowing workers to load, inspect or remove goods from either side of the cage.

This design is useful when the cage is positioned:

• Along a warehouse aisle
• Beside a production line
• In a temporary picking area
• Near a loading or unloading station
• Between different manufacturing processes

Dual-side access can reduce unnecessary product movement, especially when several components are stored in the same cage.

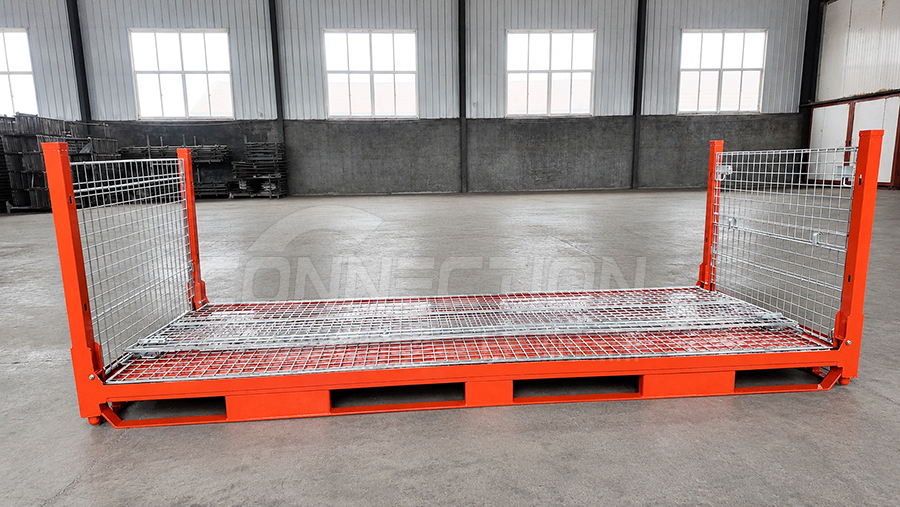

Collapsible Structure for Empty-Cage Storage

A steel storage cage takes up the same amount of floor space whether it is full or empty unless it has a folding structure.

When the CC-3200/1100 is not in use, its side frames can be folded down to create a more compact unit. This makes it easier to store empty cages and improves loading efficiency during return transportation.

The folding design is different from a structure in which the main posts must be removed and stored separately. The side frames can be lowered while the main structural parts remain connected, reducing the number of loose components that operators need to manage.

A locking mechanism is used to secure the structure when the side frames are raised for operation.

Stackable Storage for Better Use of Warehouse Height

The CC-3200/1100 is also designed for vertical stacking. Instead of arranging every cage separately on the warehouse floor, assembled cages can be stacked to make better use of available height.

Under suitable loading and operating conditions, the cages may be stacked four to five levels high.

The actual stacking height should be determined according to:

• Load capacity of each cage
• Weight distribution inside the cage
• Product stability
• Warehouse floor conditions
• Forklift operating height
• Local safety requirements

Stacking performance should be confirmed before bulk production, particularly when the cage will hold concentrated or uneven loads.

Forklift and Pallet-Truck Handling

The steel base allows the cage to be moved by forklift or pallet truck. This supports daily material movement between receiving areas, warehouse locations, production lines and shipping zones.

A single cage may therefore be used across several handling stages:

1. 1Products are loaded after production or receiving.
2. 2The cage is moved to a warehouse storage area.
3. 3Materials are delivered to another production process when required.
4. 4Finished or semi-finished goods are moved to the loading area.
5. 5Empty cages are folded for storage or return transportation.

Reducing the number of times products need to be transferred between different containers can simplify internal logistics and lower the risk of handling damage.

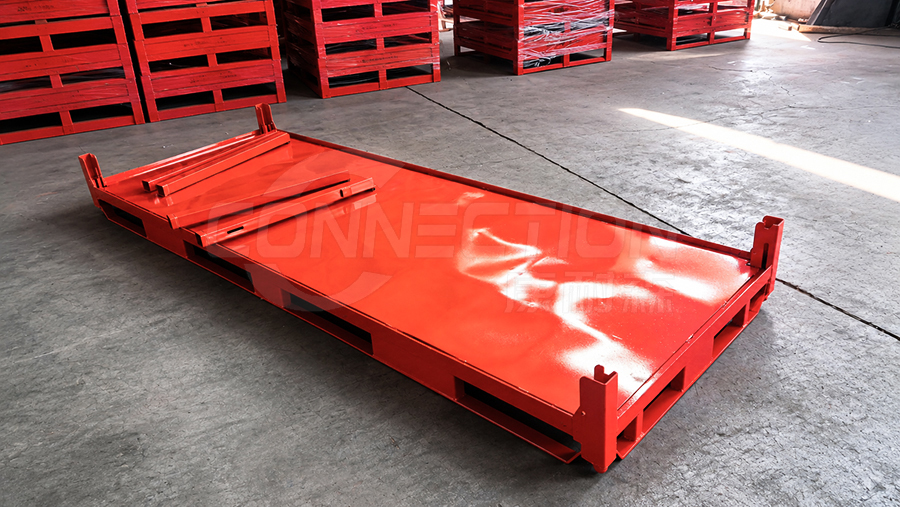

Powder-Coated Base and Zinc-Plated Sides

The CC-3200/1100 uses two surface treatments for different parts of the structure.

The base and posts have a powder-coated finish, while the side mesh panels are zinc plated. This gives the cage a practical finish for repeated warehouse and transport use.

Available customization may include:

• Powder-coating colour
• Surface-treatment combination
• Wire mesh configuration
• Base reinforcement
• Gate arrangement
• Customer logo or identification plate

The appropriate treatment should be selected according to whether the cage will be used mainly indoors, during transportation or in an environment with higher moisture exposure.

How Much Shipping Space Does the Folded Cage Require?

The final loading quantity may still be affected by packaging materials, loading method and any structural modifications requested for the order.

For customized versions, the container-loading plan should be recalculated after the final dimensions and folding height have been confirmed.

Where Can the CC-3200/1100 Be Used?

The cage is intended for industrial storage and material-handling applications where standard pallet cages are too short.

Typical environments include:

It can be used as a reusable storage and handling unit rather than as disposable packaging.

What Information Is Needed for a Custom Storage Cage?

Selecting an industrial storage cage involves more than choosing an external size. Buyers should provide enough information for the structure, base and stacking design to be evaluated correctly.

Before requesting a quotation, prepare the following details:

• Maximum product length, width and height
• Total weight loaded in each cage
• Number of products stored per cage
• Required stacking height
• Forklift or pallet-truck entry direction
• Indoor or outdoor operating environment
• Preferred surface treatment
• Required order quantity
• Container-loading or transport restrictions

Photos, drawings or simple product sketches are also helpful when the goods have an irregular shape.

Based on this information, the dimensions, load capacity, base reinforcement and gate arrangement can be adjusted for the application.

Frequently Asked Questions

Request a Custom Long Collapsible Storage Cage

The CC-3200/1100 provides a practical option for businesses that need to store long materials while maintaining forklift handling, vertical stacking and compact empty-cage storage.

To receive a suitable design and quotation, send us your product dimensions, loading weight, required stacking height, quantity and handling method.

Our team will review the application and recommend an appropriate long collapsible storage cage configuration.
